Flexco® Rivet Solid Plate Fastening System

  • Flexco® Rivet Solid Plate Splice
  •  Rivet Solid Plate Strips

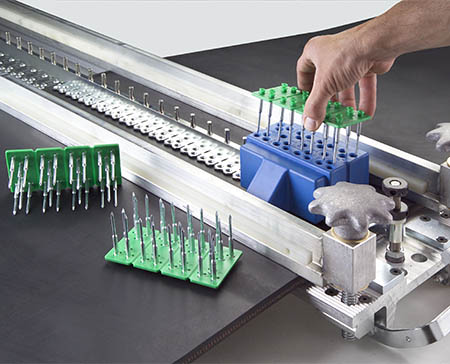

  • Flexco® Rivet Solid Plate Rapid Loader
  • Flexco® Rivet Solid Plate Rivet Bucket
  • River Solid Install

The Flexco® Rivet Solid Plate Fastening System is recommended for high-tension applications, with a staggered, multiple-point attachment for a long-lasting hold. Ideal for use with straight-warped belts because rivets separate the fibers instead of displacing the carcass.

Why Rivet Solid Plate?

  • Mechanical fastener rating from 400 to 800 PIW (70 to 140 kN/m)
  • Belts from 1/4” to 15/16” (6 mm to 24 mm) thick
  • Pulley diameters from 14” to 36” (350 mm to 900 mm)
  • Low-profile, Scalloped Edge® design is conveyor component compatible
  • Wide, heavy-gauge plates promote long wear life, with a sift-free splice
  • Rivet-attached for maximum resistance to pull out
  • Compatible with troughed belts

Installation Method

  • Portable tooling
  • Choice of hand or power installation

Select the best Flexco® Rivet Solid Plate Fastener for your application

Narrow your fastener selection options based on your specific needs

Help Me Choose

Browse Flexco® Rivet Solid Plate Fasteners

Please wait while we gather your results.

View more

Resource Library

How Flexco® Rivet Solid Plate Fasteners Work

The Flexco® BR fastener offers longer service life in demanding, higher- tension applications and is an excellent replacement for vulcanized splicing in a wide range of industries.

Designed for high strength synthetic carcass belting, the fastener is installed with a staggered pattern of rivets to ensure maximum grip on the belt fibers. Working between these fibers without severing them, the strength of the belt is left intact. The specially-shaped head of each pilot nail works with the installation tool’s anvil plate to “self-set” the rivets.

The same hammer blows that drive and set the rivets also tightly compress the fastener plates for the strongest possible splice. The broad width and heavy gauge
of the plates give extended wear life. These plates compress uniformly and are specially coined so there are no high spots or edges to hang up.



Fastener Size For Belts With
Mechanical Fastener Ratings Up To:
Belt Thickness Range Recommended Minimum Pulley Diameter
Operating Tension
75-100% of Belt Rating
Operating Tension
50-75% of Belt Rating
Operating Tension
Under 50% of Belt Rating

P.I.W.
kN/m
in.
mm
in.
mm
in.
mm
in.
mm
BR6

400*

70*

1/4-21/32

6.5-17

14

350

12

300 10 250
BR10

650

114

7/32-11/16

6-17

18

450 16 400 14 350
BR14

375

140

13/32-15/16

10-24

36

900 34 860 34 860

* Contact Flexco Engineering for applications greater than 400 PIW (70kN/m).
