PT Smart Belt Trainer

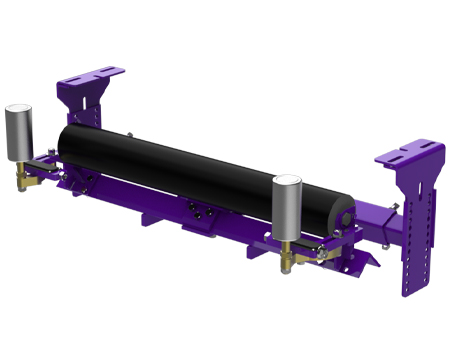

  • PT Smart™ Belt Trainer
  • PT Smart™ Belt Trainer trainer in motion

The patented PT Smart Belt Trainer takes our unique "pivot and tilt" design and puts it into an economical, medium duty trainer. This unit reacts and compensates instantly to belt misalignment, ensuring that the belt stays away from the structure and the material stays on the belt. The result: a continuous solution to mistracking problems that cause damage to the belt and conveyor structure at an affordable price.

Features & Benefits

  • For belts mistracking to one side or both sides
  • Above-ground and underground models
  • Available on a one-working day lead time
  • Works with mechanically fastened and vulcanized belts
  • Simple, adjustable mounting brackets ensure quick and accurate installation
  • 2-Year “No Risk” Performance Guarantee
  • Maximum Belt Tension: 1600 PIW (280 N/mm)
  • Belt speeds up to 1000 fpm (5 m/sec)
  • Belt widths from 18" to 72" (450 to 1800 mm)

Installation

  • Single direction belts
  • Return side installation
Please wait while we gather your results.

View more

Resource Library

Conveyor Criteria

PT Smart

Top side mistracking
No
Return side mistracking
Yes
Reversing belts
No
Belt mistracking to one side
Excellent
Belt mistracking to both sides
Excellent
Inconsistent tracking problem
Excellent
Belt is cupped (heavy)
Good
Belt has low running tension
Excellent
Belt has medium running tension
Excellent
Belt has high running tension
Good
Approx. “upstream” effect*
20' (6 M)
Approx. “downstream” effect*
150 - 200'
(45 - 61 M)

*Typical results; actual results may vary

MineLine

MINELINE®
When standard products just won't do.
Flexco Mineline® products are designed and engineered to work in some of the toughest applications in the world that test the strength and durability of your conveyor system. Products carrying the Mineline® name are proven to work — even where other products have failed.
