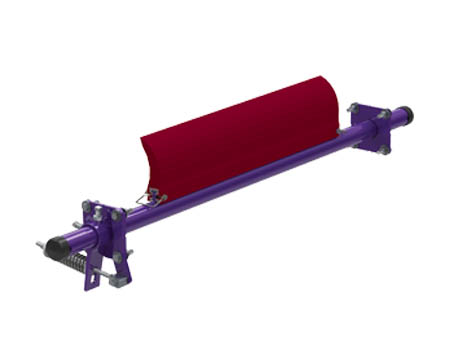

EZP1 Ultra High-Temp

  • EZP1 Ultra High-Temp
  • EZP1 Ultra High-Temp Blade
Now there is a new polyurethane-blade precleaner that outperforms other “hot” blades. The Ultra High-Temp ConShear™ Blade is designed for continuous ambient temperatures up to 400ºF (200ºC) and spikes to 450ºF (230ºC). This deep red blade takes the heat and yet provides the extended wear life of Flexco’s standard ConShear blade.


Specifications

  • Maximum Belt Speed: 700 fpm (3.5 m/sec)
  • Temperature Rating: Up to 400°F (200°C) with spikes up to 450°F (232°C)
  • Minimum Pulley Diameter: 10" (250 mm)
  • ConShear blade sizes available:
    • Belt Width Minus 2" (50 mm),  8" (200 mm), and 14" (350 mm)
  • Blade Height: 7-1/4" (185 mm)
  • Usable Blade Wear Length: 4" (100 mm)
  • Blade Material: Ultra High-Temp Polyurethane 90 durometer (proprietary blend for abrasion resistance and long wear)
  • Pole Diameter: 2-3/8" (60 mm)
  • Belt Widths: 12" to 72" (300 to 1800 mm)

Installation

  • Comes complete with universal mounting plates and tensioner
  • Horizontal clearance required: 4" (100 mm)
  • Vertical clearance required: 9-1/2" (238 mm)
  • Products
  • Specifications
  • Instructions
  • Sales Support
Apply FiltersClose
Refine Results
Please wait while we gather your results.

Spring Length Chart
with EST Spring Tensioner

BLADE
WIDTH
PURPLE
SPRING
SILVER
SPRING
BLACK
SPRING
in.
mm
in.
mm
in.
mm
in.
mm
10 250 5 3/4 146 6 1/4 159 N/A N/A
16 400 5 1/4 133 6 152 N/A N/A
22 550 4 3/4 121 5 7/8 149 N/A N/A
28 700 4 1/4 108 5 5/8 143 N/A N/A
34 850 N/A N/A 5 3/8 137 5 5/8 143
40 1000 N/A N/A 5 1/8 130 5 1/2 140
46 1150 N/A N/A 5 127 5 1/4 133
52 1300 N/A N/A 4 3/4 121 5 1/8 130
58 1450 N/A N/A N/A N/A 5 127
64 1600 N/A N/A N/A N/A 4 3/4 121
70 1750 N/A N/A N/A N/A 4 5/8 117

Bold indicates preferred spring option

Spring Tensioner Selection Chart

CLEANER BLADE WIDTH 90814
EST-A-P
90815
EST-A-S
90816
EST-A-B
UHT ConShear 10"-28" (250-700mm) X
UHT ConShear 34"-52" (850-1300mm)   X
UHT ConShear 58"-70" (1450-1750mm     X
