Slider Beds

  • EZ Slider Bed

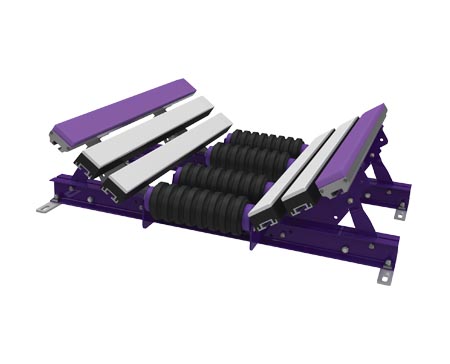

  • EZ Slider Bed with Impact Rolls

Flexco Slider Beds are engineered to provide containment around load zones. With long-lasting UHMW slider bars, combined with high-performance rolls, the Flexco Slider Bed effectively seals the load zone and minimizes drag on the belt. This series features universal components that result in an effective, yet affordable, solution.

Slider beds can be paired with Flexco Impact Beds to create a holistic load zone system.

Features and Benefits

  • Troughs can be lowered for install and service
  • Long service life and cost-effective part replacement
  • CEMA D Construction
  • Adjustable trough angle: 20°, 35°, 45°
  • In 4' (1200 mm) and 5' (1500 mm) bed lengths
  • Available with standard rolls or impact rolls

Specifications

  • Maximum Belt Speed: 1000 fpm (5 m/sec)
  • Max Temperature Rating: -40°F to 180°F (-40°C to 82°C)
  • Slider Bar Material: UHMW Polyethylene and aluminum extrusion
  • Impact Bar Material: UHMW Polyethylene, rubber cushion and aluminum extrusion
  • Impact Energy: Max Lump Weight (lb) x Drop Height (ft)
    • 0 lb-ft (0 kg-m) EZSB-S
    • Up to 200 lb-ft (up to 25 kg-m) EZSB-I
  • Available for Belt Widths: 24" to 72” (600 to 1800 mm)



  • Products
  • Specifications
  • Instructions
  • Sales Support
  • CAD Drawings
Apply FiltersClose

Product Type

clear
Beds(32)
Replacement Parts(68)
Refine Results
Please wait while we gather your results.

Shim Requirements



IMPACT BED SIZE CEMA C OR D, 5” (125 mm)
IDLERS		 CEMA C OR D, 6” (150 mm)
IDLERS
24"-36" (600-900 mm)  Shim idler up .5" (12.5 mm) No Kits Required
42"-72" (1050-1800 mm) No Kits Required Use (1) SHIM-KITL; Shim up .5" (12.5 mm)



IMPACT BED SIZE CEMA E, 6” (150 mm)
IDLERS		 CEMA E, 7” (175 mm)
IDLERS
36"-60" (900-1500 mm) Use (3) SHIM-KITL; Shim up 1.5" (37.5 mm) Use (4) SHIM-KITL; Shim up 2" (50 mm)
72" (1800 mm) Use (4) SHIM-KITL; Shim up 2" (50 mm) Use (5) SHIM-KITL; Shim up 2.5" (62.5 mm)
