Fix'N Go® Belt Repair System
Features
- Available in Abrasion-Resistant(AR) and Heat Resistant (withstands temps up to 340°F (170°C)
- Flexible and resistant to elongation
- Quick to install, permanent repair
- Available with stainless steel or galvanized steel screws
- Specially-designed self-drilling, self-tapping screws preserve the integrity of the belt by passing between the carcass threads without cutting them
- Compatible with pulley diameters as small as 8” (200mm)
Benefits

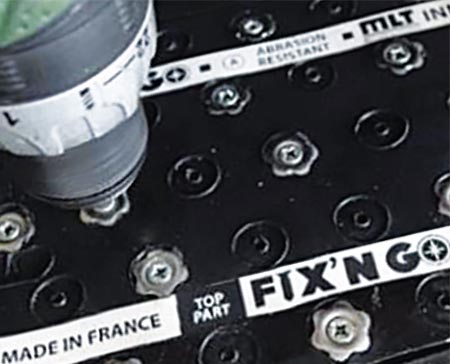

- Can be installed quickly and easily by on-site crew, using a drill
- Vulcanized rubber with fabric plies offers high protection against friction, wear, and stretching
- Can be used on all multi-ply and mono-ply belts up to 850 PIW
- Compatible with belt cleaners and other conveyor components
- Can be used on longitudinal rips, crosswise rips, belt edge rips, holes and tears, and even when two belts need to be spliced together longitudinally
- Products
- Specifications
- Instructions
- Sales Support
- CAD Drawings
Apply FiltersClose
Refine Results
Please wait while we gather your results.
Repair Kit Rolls
| Description | Rubber Compound | Screw Type | Item Code |
|---|---|---|---|
| Fix'N Go 2 Meter Kit - AR | AR Abrasion Resistant | Galvanized or Stainless |
Configurable items: 4 inputs needed: (Series)-(Rubber Compound)-(Belt Thickness After Skive)-(Splice Length) |
| Fix'N Go 2 Meter Kit - HOT | HOT 400º F | ||
| Fix'N Go 20 Meter Kit - AR | AR Abrasion Resistant | ||
| Fix'N Go 20 Meter Kit - HOT | HOT 400º F |
2 meter / 79" kits include 300 screws with washers and 1 PZ2 Drive Bit
20 meter/787" kits linclude 3000 screws with washers and 10 PZ2 Drive Bits
Screws with Washers for Super-Screw® Evolution
| Screw Size | Description |
|---|---|
| 5x10 | Galvanized Screw with Washer, 5mm diameter |
| 5x12 | |
| 5x14 | |
| 5x16 | |
| 5x18 | |
| 5x20 | |
| 5x10 | Stainless Screw® with Washer, 5mm diameter |
| 5x12 | |
| 5x14 | |
| 5x16 | |
| 5x18 | |
| 5x20 |
