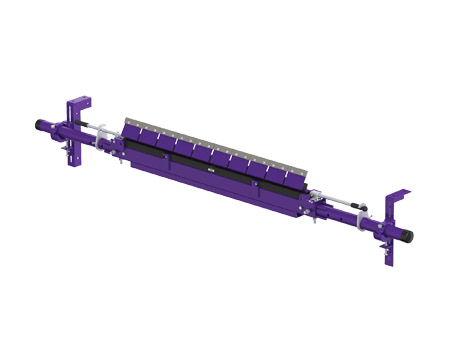

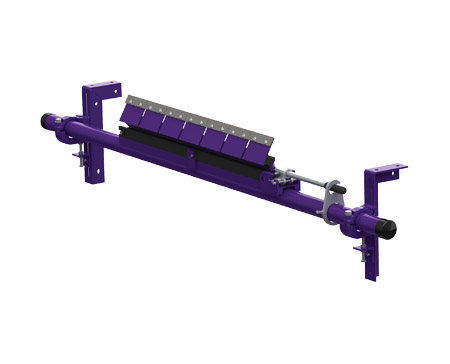

P-Type® Secondary Cleaner

  • P Type 1

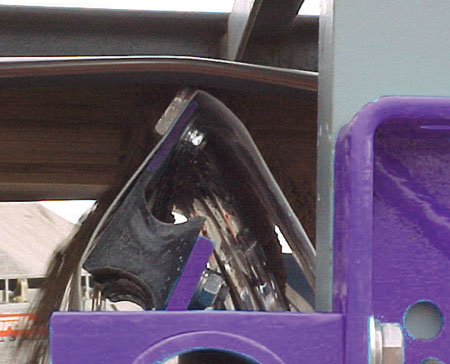

  • P Type Application
  • P Type 2

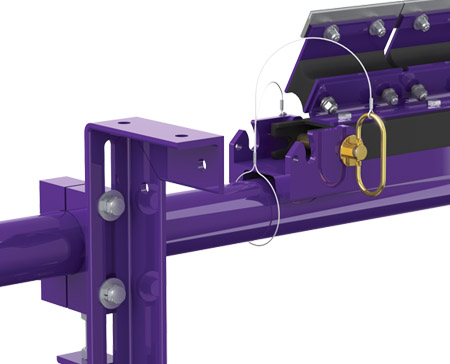

  • P Type Close Up
The Flexco P-Type® Secondary Belt Cleaner is compact and designed to be positioned just off the head pulley to remove carryback from the belt. The P-Type can be used independently, or in conjunction with a precleaner, to form a highly efficient cleaning system.

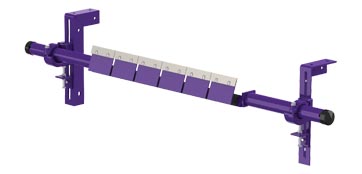

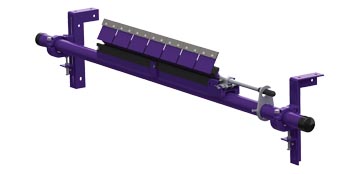

The P-Type has a compact design with an additional LS model available with a smaller installation footprint. Also available with an Enhanced Service Advantage Cartridge for easy blade removal and replacement.


Features and Benefits

  • Segmented blades ensure proper wear throughout the life of the blade
  • Tungsten carbide blades deliver high cleaning efficiency and long wear life
  • Tips available for mechanically fastened or vulcanized belts
  • CEMA Class 4
  • Versatile tensioner kit can be mounted to push-up or pull-up the cleaner
  • Belt speeds up to:
    • C-Tip: 1000 fpm (5.0 m/sec)
    • V-Tip: 1200 fpm (6.0 m/sec)
  • Belt widths 18" to 72" (450 to 1800 mm)


Installation

  • Can be mounted 4" (100 mm) from the transition point where the belt leaves the head pulley or any location down the beltline
  • When the P-Type is teamed with a precleaner the system provides maximum cleaning power for tough applications
  • Cleaners

Narrow your cleaner selection options based on your specific needs. Help Me Choose

Browse P-Type®Secondary Cleaners

Apply FiltersClose

Filter More Resources

clear

View more

Resource Library

Please wait while we gather your results.

Common Applications

  • Aggregate
  • Sand & Gravel
  • Cement
  • Wood Processing
  • Recycling
  • Light Mining
  • Power Plants with Vulcanized Belts

MineLine

MINELINE®
When standard products just won't do.
Flexco Mineline® products are designed and engineered to work in some of the toughest applications in the world that test the strength and durability of your conveyor system. Products carrying the Mineline® name are proven to work — even where other products have failed.
