MSP-UHT1448

Ordering Number:MSP-UHT1448Item Code:91281
Add To My List
 My List allows you to create a list of needs to forward to a distributor
MSP-UHT1448

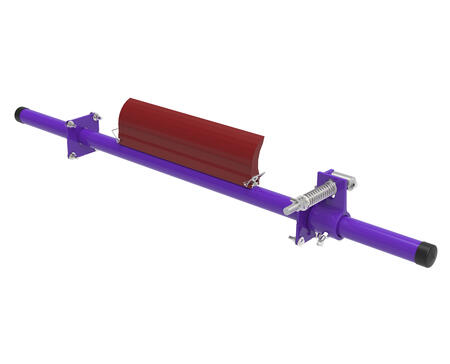

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.

Specifications

use imperialuse metric
Belt Width (in.)48
Belt Width (mm)1200
Blade Width (in.)34
Blade Width (mm)850
Belt Width Minus (in.)14
Belt Width Minus (mm)350
Maximum Conveyor Span (in.)92
Maximum Conveyor Span (mm)2300
CEMA RatingClass 3
Maximum Belt Speed (FPM)700
Maximum Belt Speed (M/sec)3.5
Minimum Pulley Diameter (in.)16
Minimum Pulley Diameter (mm)400
Temperature Range (C)Up to 400° with spikes up to 450°
Temperature Range (F)Up 200° with spikes up to 232°
Cleaner MaterialMild Steel Powdercoat
Blade MaterialUltra High-Temp Polyurethane
Blade Durometer90
Blade ConfigurationSingle
Blade Height (in.)7 1/4
Blade Height (mm)185
Usable Blade Wear Length (in.)4
Usable Blade Wear Length (mm)100
TensionerQMT Spring Tensioner
Pole Length (in.)102
Pole Length (mm)2550
Pole Diameter (in.)2 7/8
Pole Diameter (mm)73
Horizontal Clearance Required (in.)4
Horizontal Clearance Required (mm)100
Vertical Clearance Required (in.)10
Vertical Clearance Required (mm)250
Weight (kg)48.9
Weight (lbs)107.8

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
