Flexco - Partners in Productivity

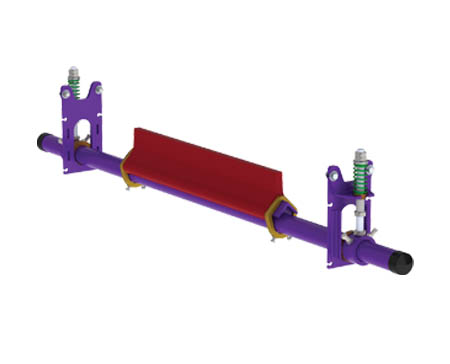

Y-Type™ Heavy-Duty with Ultra High-Temp Blades

Conveyor Belt Cleaner

The Y-Type™ Heavy-Duty with Ultra High-Temp Blades is made from heavy-duty, powder-coated steel with a 2-7/8” (73 mm) diameter pole and works on reversing belts, vulcanized belts, and belts with mechanical fasteners.

Specifications

  • Maximum Belt Speed: 750 fpm (3.8 m/sec)
  • Temperature Rating: 400° F (200° C) with spikes to 450° F (232° C)
  • Usable Blade Wear Length: 3" (76 mm)
  • Blade Material: Polyurethane (ultra high-temp)
  • 3" (75 mm) wide blade segments
  • Option to remove and replace blades individually or as a complete cartridge
  • Pole Diameter: 2-7/8" (73 mm)
  • Available for Belt Widths: 36" to 72" (900 to 1800 mm)

Installation

  • Pole Length: Pole Length: Belt width plus 54" (1350 mm). For longer requirements, see Pole Extenders under Belt Cleaner Accessories.
  • Horizontal clearance required: 5-1/4" (133 mm)
  • Vertical clearance required: 9-1/2" (241 mm)
  • To make cleaner installation easier and quicker, see Optional Mounting Kits under Belt Cleaner Accessories.
  • Products
  • Specifications
  • Instructions
  • Sales Support
  • CAD Drawings
Apply FiltersClose

Product Type

clear
Cleaners(6)
Refine Results
Please wait while we gather your results.

Spring Length Chart

BLADE WIDTH SILVER
SPRINGS		 BLACK
SPRINGS
in.
mm
in.
mm
in.
mm
36 900 3 76 3 3/8 86
42 1050 2 7/8 73 3 1/4 83
48 1200 2 5/8 67 3 1/8 79
54 1350 2 1/2 64 3 76
60 1500 N/A N/A 2 7/8 73
72 1800 N/A N/A 2 1/2 64

Bold indicates preferred spring option

Spring Tensioner Selection Chart

CLEANER BLADE WIDTH GREEN
YSTHD-GR		 BLUE
YSTHD-BL
Polyurethane 36" - 48" (900 mm - 1200 mm) X
Polyurethane 54" - 72" (1350 mm - 1800 mm)   X
