YTHDR-72S

Ordering Number:YTHDR-72SItem Code:91821
Add To My List
 My List allows you to create a list of needs to forward to a distributor
YTHDR-72S

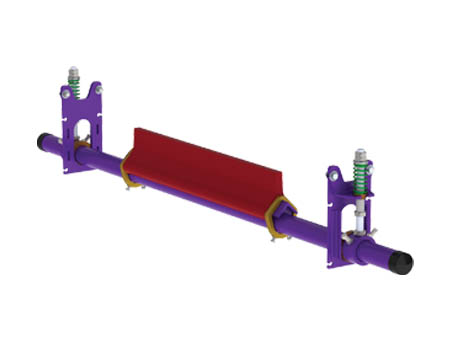

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.

Specifications

use imperialuse metric
Belt Width (in.)72
Belt Width (mm)1800
Maximum Conveyor Span (in.)118
Maximum Conveyor Span (mm)2997
CEMA RatingClass 3
Maximum Belt Speed (FPM)750
Maximum Belt Speed (M/sec)3.8
Temperature Range (C)Up to 200°
Spikes to 232°
Temperature Range (F)Up to 400°
Spikes to 450°
Cleaner MaterialMild Steel Powdercoat
Blade MaterialPolyurethane
Blade Durometer90A
Blades Required24
Blade ConfigurationSegmented
Usable Blade Wear Length (in.)3
Usable Blade Wear Length (mm)76
TensionerYST Spring Tensioner
Pole Length (in.)126
Pole Length (mm)3200
Pole Diameter (in.)2 7/8
Horizontal Clearance Required (in.)5 1/4
Horizontal Clearance Required (mm)133
Vertical Clearance Required (in.)9 1/4
Vertical Clearance Required (mm)248
Weight (kg)84.6
Weight (lbs)186.5

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
For additional product support, visit the related Product Line and Family pages or the Resources tab.
