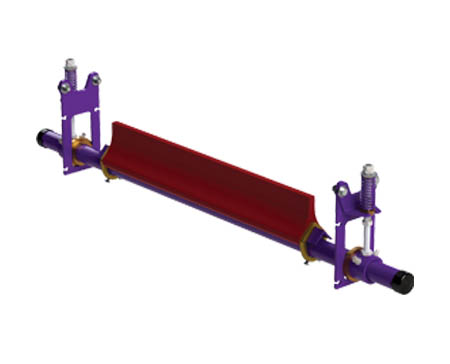

Y-Type™ Standard-Duty with Ultra High-Temp Blades

Conveyor Belt Cleaner

The Y-Type™ Standard-Duty with Ultra High-Temp Blades is made from heavy-duty, powder-coated steel with a  2-3/8" (60 mm) diameter pole and works on reversing belts, vulcanized belts, and belts with mechanical fasteners.

Specifications

  • Maximum Belt Speed: 600 fpm (3 m/sec)
  • Temperature Rating: 400° F (200° C) with spikes to 450° F (232° C)
  • Usable Blade Wear Length: 2" (50 mm)
  • Blade Material: Polyurethane (ultra high-temp)
  • 3" (75 mm) wide blade segments
  • Option to remove and replace blades individually or as a complete cartridge
  • Pole Diameter: 2-3/8" (60 mm)
  • Available for Belt Widths: 18" to 48" (450 to 1200 mm)

Installation

  • Pole Length: Pole Length: Belt width plus 30" (750 mm). For longer requirements, see Pole Extenders under Belt Cleaner Accessories.
  • Horizontal clearance required: 4-1/4" (110 mm)
  • Vertical clearance required: 8-1/4" (210 mm)
  • To make cleaner installation easier and quicker, see Optional Mounting Kits under Belt Cleaner Accessories.
  • Products
  • Specifications
  • Instructions
  • Sales Support
  • CAD Drawings
Apply FiltersClose

Product Type

clear
Cleaners(6)
Refine Results
Please wait while we gather your results.

Spring Length Chart

BLADE WIDTH YELLOW
SPRINGS		 PURPLE
SPRINGS
in.
mm
in.
mm
in.
mm
18 450 3 1/4 83 3 5/8 92
24 600 2 7/8 73 3 3/8 86
30 750 2 5/8 67 3 1/8 79
36 900 2 1/4 57 2 7/8 73
42 1050 N/A N/A 2 5/8 67
48 1200 N/A N/A 2 3/8 60

Bold indicates preferred spring option

Spring Tensioner Selection Chart

CLEANER BLADE WIDTH 79836
YST-Y		 79837
YST-P
Polyurethane 18" - 30" (450 mm - 750mm) X
Polyurethane 36" - 48" (900 mm - 1200mm)   X



Please wait while we gather your results.
Please wait while we gather your results.
No CAD Drawings are available for this Product Series
