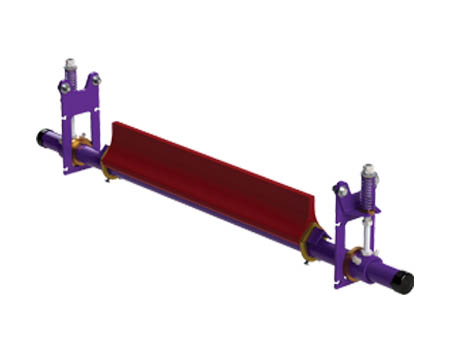

YTR-42S
Ordering Number:YTR-42SItem Code:91802
Add To My List
My List allows you to create a list of needs to forward to a distributor
Images are representative and may not match the specific item code you are viewing.
View additional information, instruction manuals and more at the links below.
Specifications
use imperialuse metric
Belt Width (in.)42
Belt Width (mm)1050
Maximum Conveyor Span (in.)64
Maximum Conveyor Span (mm)1625
CEMA RatingClass 3
Maximum Belt Speed (FPM)600
Maximum Belt Speed (M/sec)3
Temperature Range (C)Up to 200°
Spikes to 232°
Spikes to 232°
Temperature Range (F)Up to 400°
Spikes to 450°
Spikes to 450°
Cleaner MaterialMild Steel Powdercoat
Blade MaterialPolyurethane
Blade Durometer90A
Blades Required14
Blade ConfigurationSegmented
Usable Blade Wear Length (in.)2
Usable Blade Wear Length (mm)50
TensionerYST Spring Tensioner
Pole Length (in.)72
Pole Length (mm)1800
Pole Diameter (in.)2 3/8
Horizontal Clearance Required (in.)4 1/4
Horizontal Clearance Required (mm)110
Vertical Clearance Required (in.)8 1/4
Vertical Clearance Required (mm)210
Weight (kg)37.6
Weight (lbs)83.0
NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
For additional product support, visit the related Product Line and Family pages or the Resources tab.
