Ordering Number:1XSPS12Item Code:02143
Add To My List
 My List allows you to create a list of needs to forward to a distributor

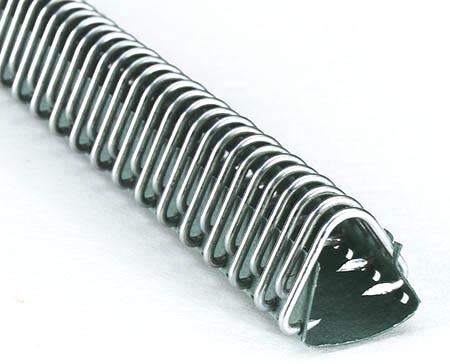

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.


use imperialuse metric
Hook Size1XSP (1D)
Hook StyleCarded
Belt Thickness (in.)1/16-3/32
Belt Thickness (mm)1.6-2.4
Minimum Pulley Diameter (in.)2
Minimum Pulley Diameter (mm)50
Wire Diameter (in.).040
Wire Diameter (mm)1.02
Required Pin Diameter (in.).065
Required Pin Diameter (mm)1.7
Fastener MaterialStainless (Type 430)
Strip Length (in.)12
Strip Length (mm)300
Hooks Per Card or Strip96
Hinge Pin IncludedNo
Cards or Strips per Box12
Lacing Inches/Box144
Weight (kg).27
Weight (lbs).6

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
