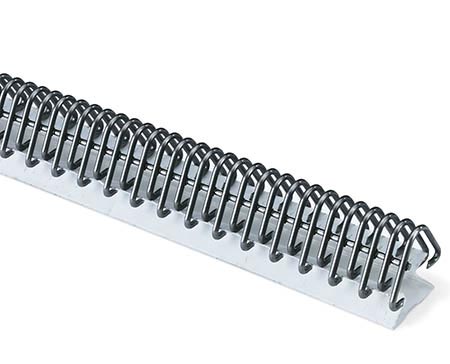

UA2SS12

Ordering Number:UA2SS12Item Code:01292
Add To My List
 My List allows you to create a list of needs to forward to a distributor
UA2SS12

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.

Specifications

use imperialuse metric
Hook SizeUA2
Hook StyleUnibar®
Belt Thickness (in.)1/8-5/32
Belt Thickness (mm)3.2-4.0
Minimum Pulley Diameter (in.)2
Minimum Pulley Diameter (mm)50
Wire Diameter (in.).047
Wire Diameter (mm)1.19
Required Pin Diameter (in.).093
Required Pin Diameter (mm)2.4
Fastener MaterialStainless (Type 316)
Strip Length (in.)12
Strip Length (mm)300
Hooks Per Card or Strip120
Hinge Pin IncludedNo
Cards or Strips per Box12
Lacing Inches/Box144
Weight (kg).5
Weight (lbs)1.1

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
